Technical Specifications

Χ
ELECTRONICS
MOTOR 970W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor
BATTERY Removable Internal Lithium-ion 48V, 15Ah (720Wh)
CHARGER Included is a 54.6V 3 Amp Fast Charger, 7 Hours Charging
DISPLAY BC280 LCD Smart Easy Read Display with Backlight screen with app
CRANKSET 170mm w/42T
CASSETTE 14-28T, 7 Speed Cassette
REAR DERAILLEUR 7 Speed

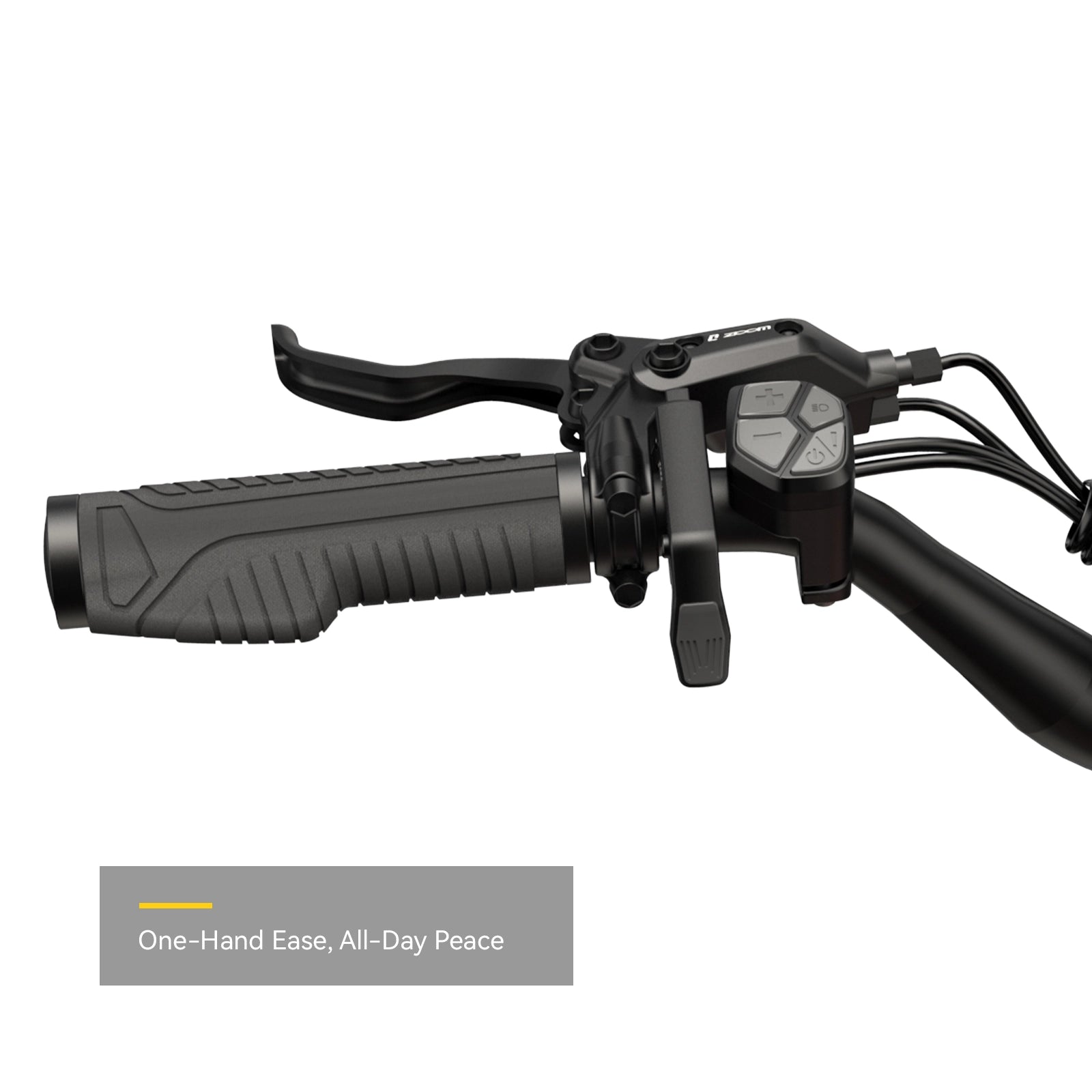

THROTTLE Throttle on demand - Throttle from a complete stop
SPEED Max 28mph after unlocked
SENSORS Torque Sensor
PEDAL ASSIST 5 Levels
RANGE 40-60 Miles Average
HOVSCO APP Free Download in Apple App and Google Play Store
FRAMESET
BOTTOM BRACKET Square Taper, Sealed
BRAKES Hydraulic Disc Brakes, 180mm Rotors
CHAIN 7 Speed
PEDALS 9/16' Alloy Platform

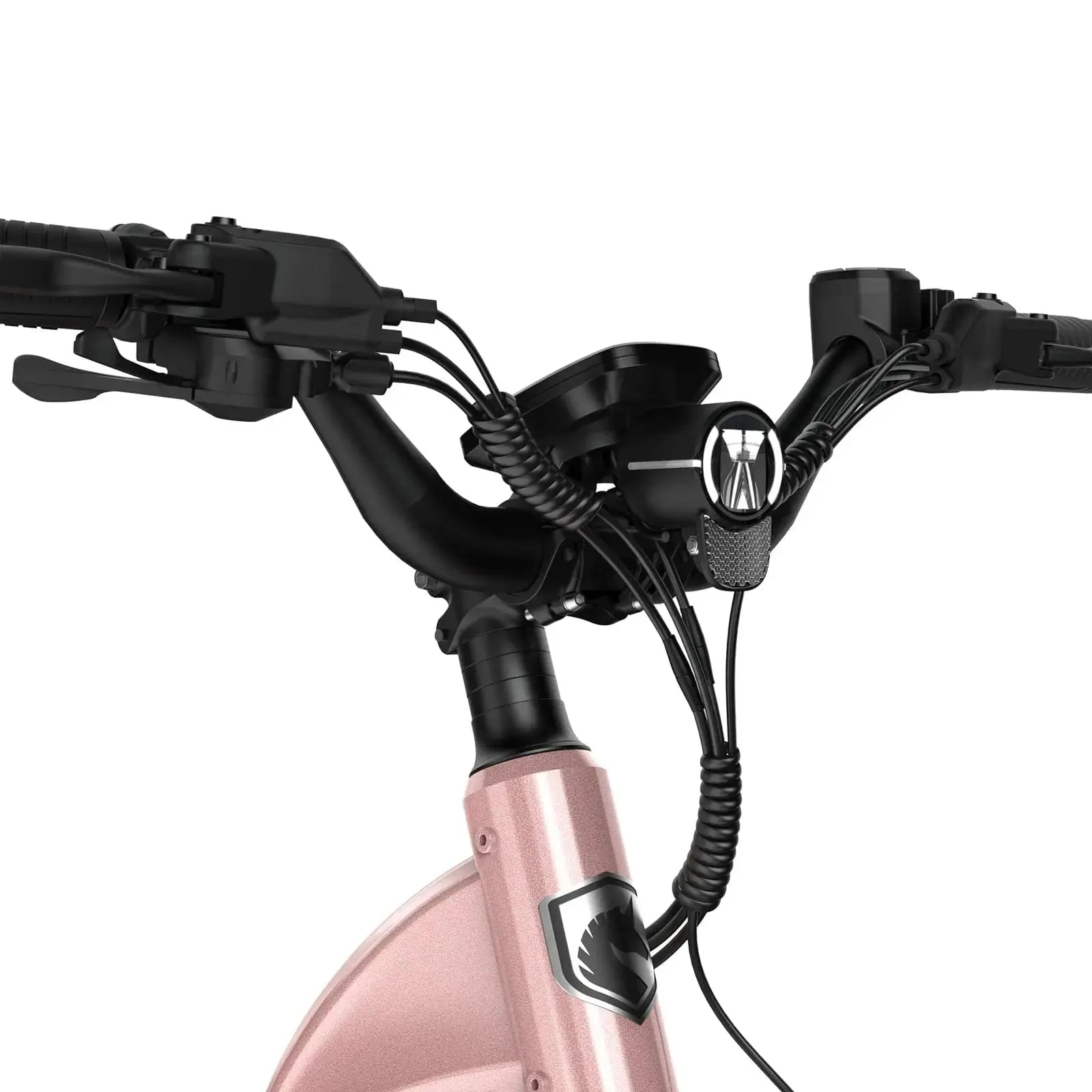

HANDLEBARS Aluminum 31.8mm,680mm
HEADSET VP Sealed Bearing Headset
GRIPS Ergonomic Comfort
SADDLE Quality Ergonomic Saddle
SEATPOST Forged Alloy, 30.4mm x 350mm, 2-Bolt Clamp
STEM Threadless, 31.8mm, 7 Degree Rise
SEAT CLAMP Quick Release
RIM Double Wall Aluminum 36h Front & Rear
SPOKES Black Stainless 12 Gauge
TUBES Butyl Rubber, Schrader Valve
HUBS 36H Disc Thru-axle Front, Nutted Rear
TIRES 27.5 x 2.20" Ebike Rated Tires
FRAME 6061 Single-Butted Aluminum Alloy with Internal Battery
FORK Suspension Fork with 75mm travel, with lockout
KICKSTAND Included, Rear Mount
WEIGHT & LOAD
WEIGHT LIMIT Maximum Payload Capacity: 300 lbs
WEIGHT 46.58lbs ( Not Including Battery )
WEIGHT 55.4 lbs ( Including Battery )

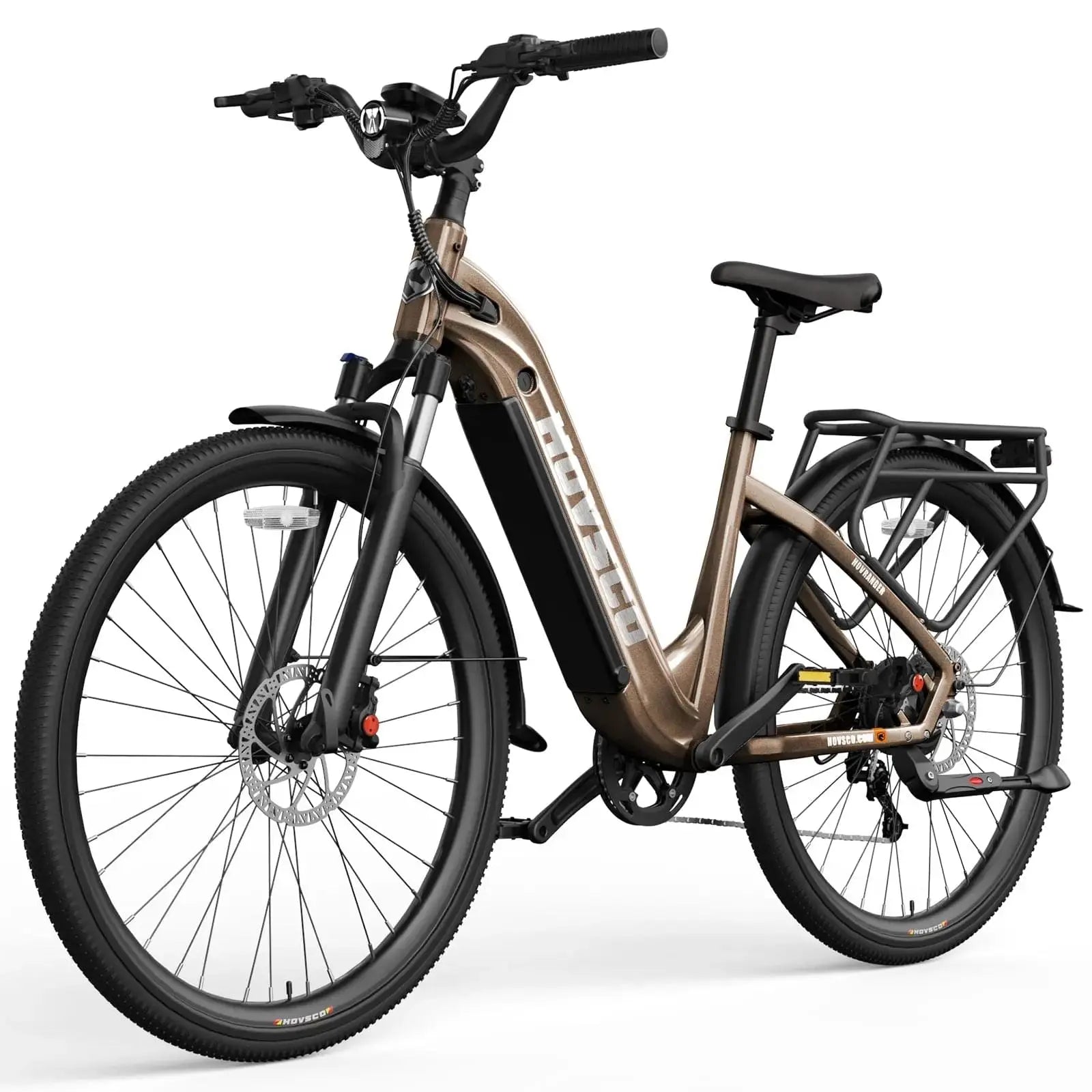

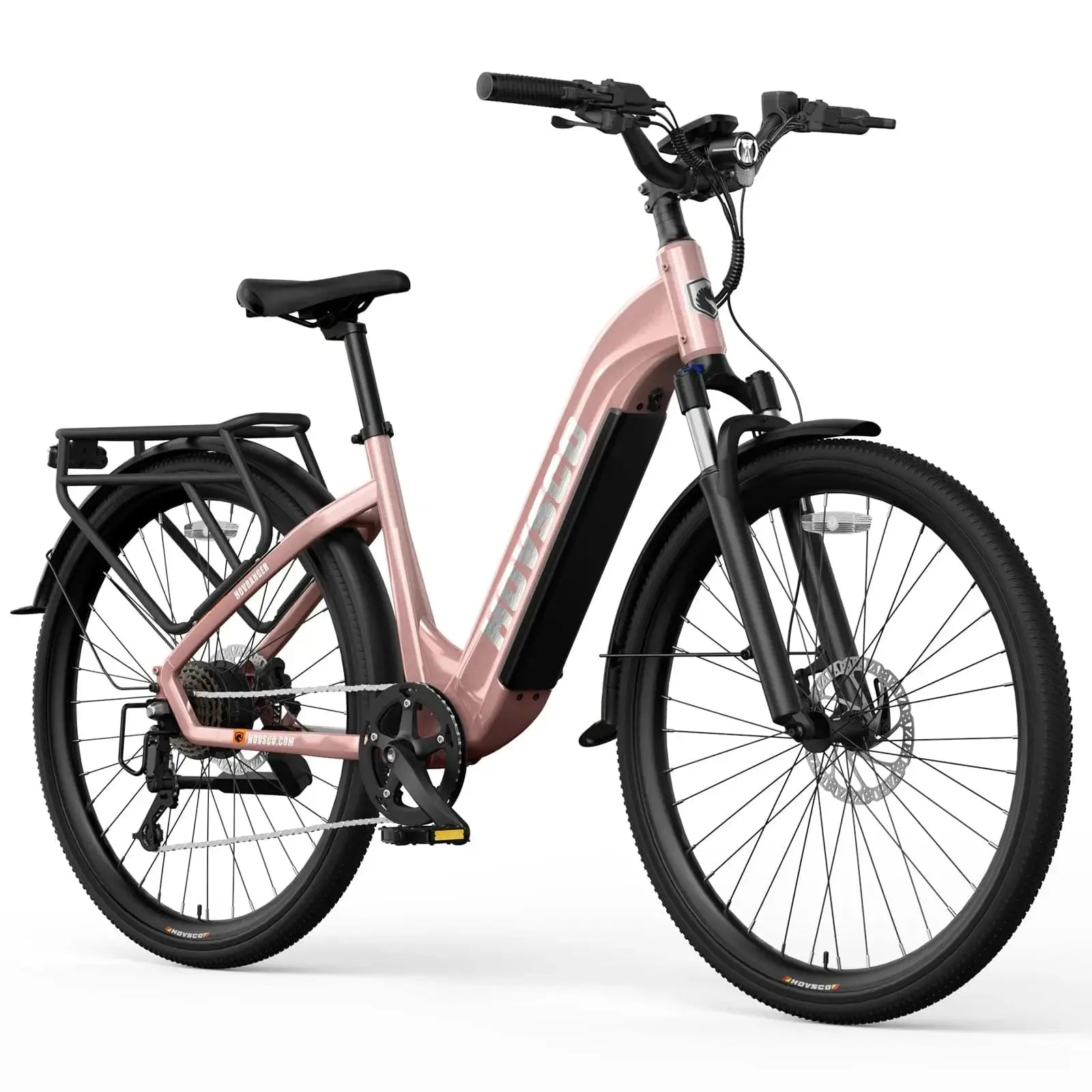

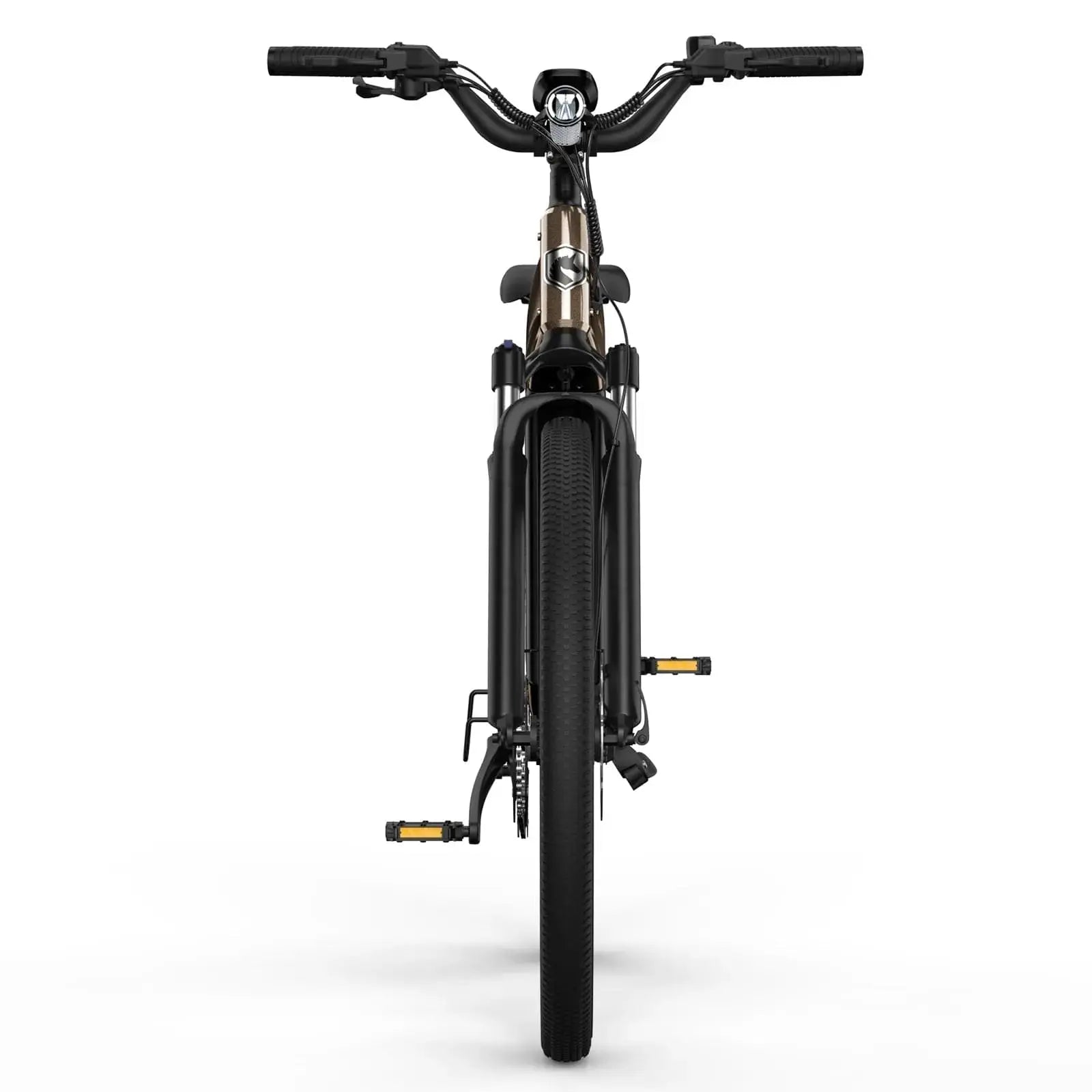

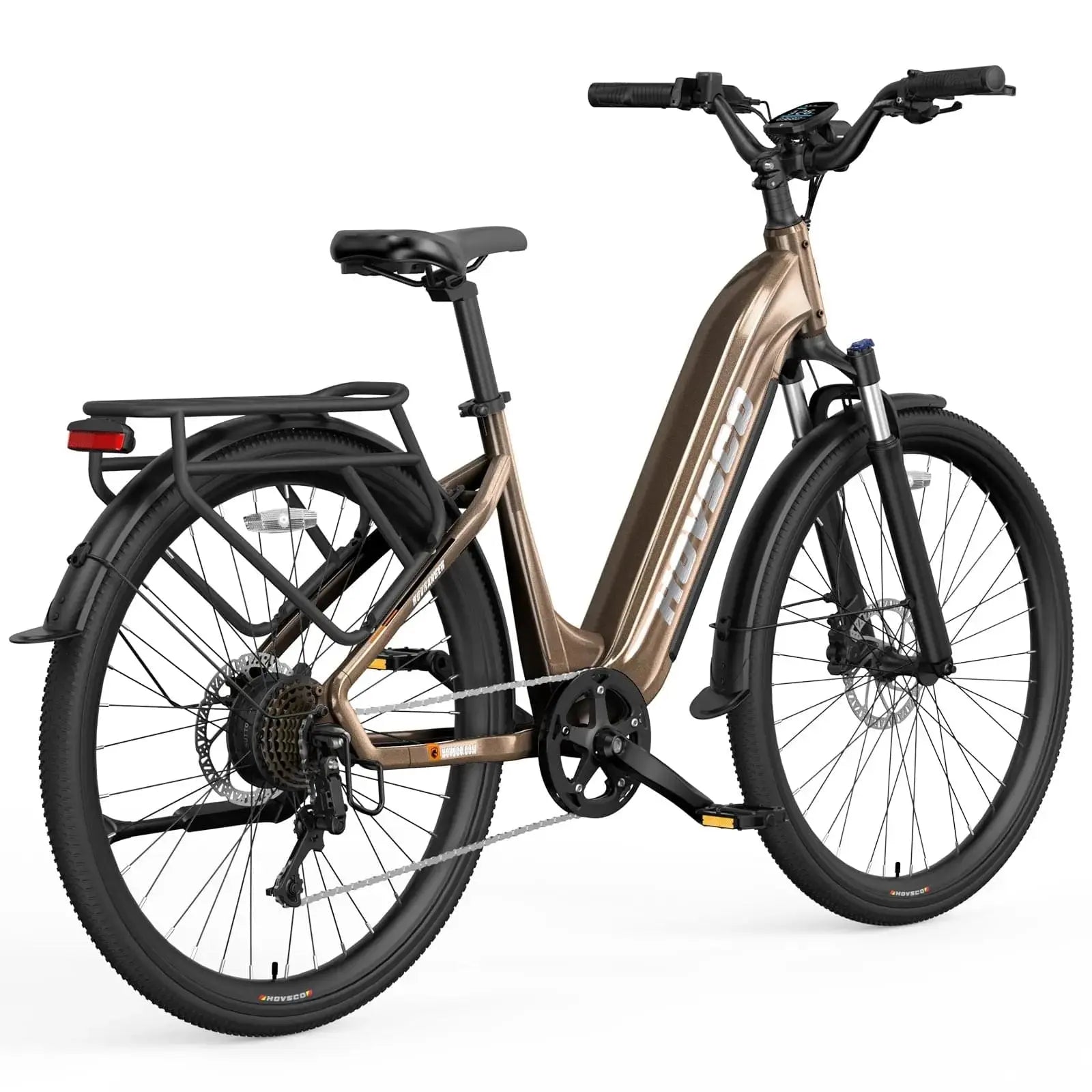

This Hovsco™ HovRanger Step-Thru is designed for riders who place equal importance on comfort and ease of use as they do on functionality. Featuring built-in fenders, a versatile rack, and ride taming suspension, you'll ride in comfort, carry everything you need, while being protected from the elements below. With the HOVSCO Commuter Ebike, you can get across town like never before. And power over hills with ease and in style and comfort.

Find happiness through motion

A sleek and agile ebike for every lifestyle. Lightweight, versatile, and powerful. Effortlessly power your daily commute, run errands swiftly, and explore new path freely

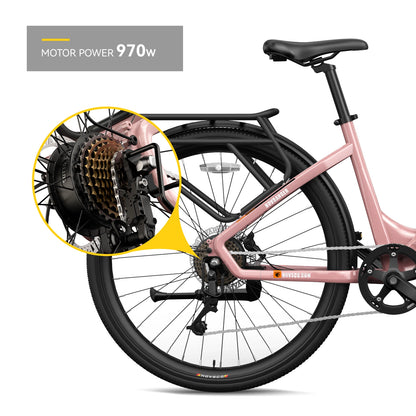

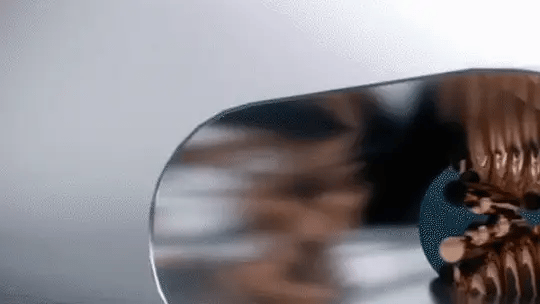

970W (Peak) 500W (Rated)Upgraded  Brushless Gear Hub Motor

Use the latest technology, which provide more power, more efficiently. The 970W (Peak) 500W (Sustained) geared hub SUTTO motor, branch brand of Bafang, can generate max 65 Nm & 28mph. torque helping conquer hills faster, conquer all terrain easier, speed up quicker and experience a stronger ride and better comfortable riding.

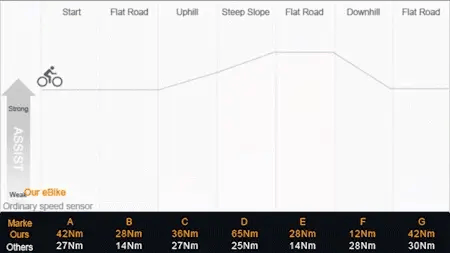

Why Torque Sensor

The torque sensor pedal assist systems measure the amount of power you are putting into the pedals and it will increase or decrease the electric assist based on your pedaling power, providing smoother acceleration, better hill-climbing capability, and improved energy efficiency. This results in a more intuitive and enjoyable ride, making torque sensing e-bikes a preferred choice for many cyclists. They are also generally found on the more expensive e-bikes or e-bike kits.

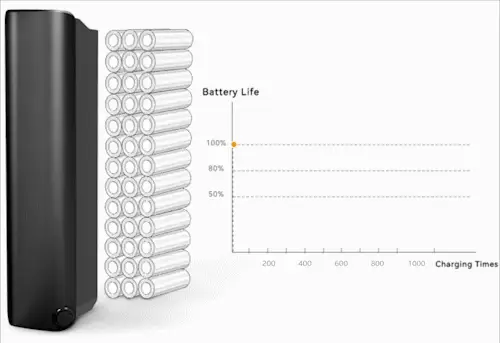

48V 15Ah Samsung/LG Lithium-ion Battery

Our powerful 500W motor is coupled with our 720Wh high- capacity integrated battery! It ensures a long life expectancy and distinguished performance. The single range can be up to 60 miles per charge on pedal-assist mode and around 40 miles on pure electric power mode. This combination will take you further, and have you tackling hills and terrain you'd only ever dreamed of!

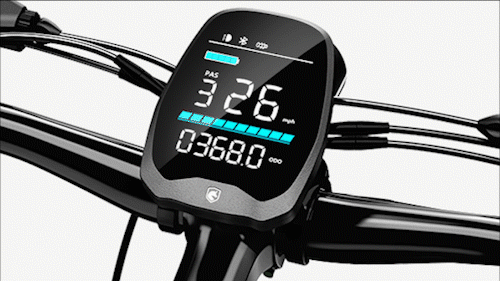

LCD Digital Panel

Keep your eyes on the road ahead knowing that all the information you need is right at your fingertips on an easy-to-read LCD screen on the handlebars. Display battery, speed, pedal assist level, range, and distance.

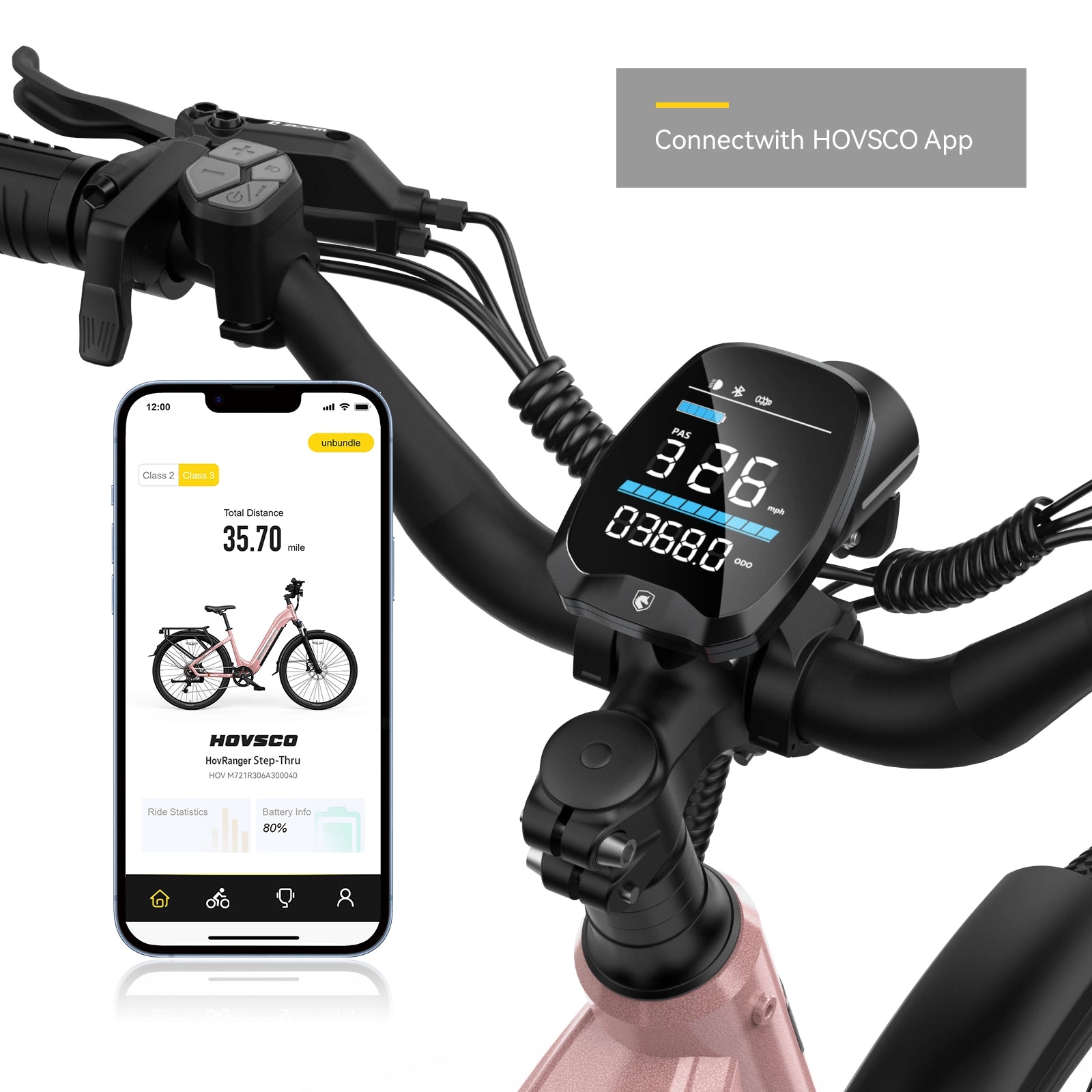

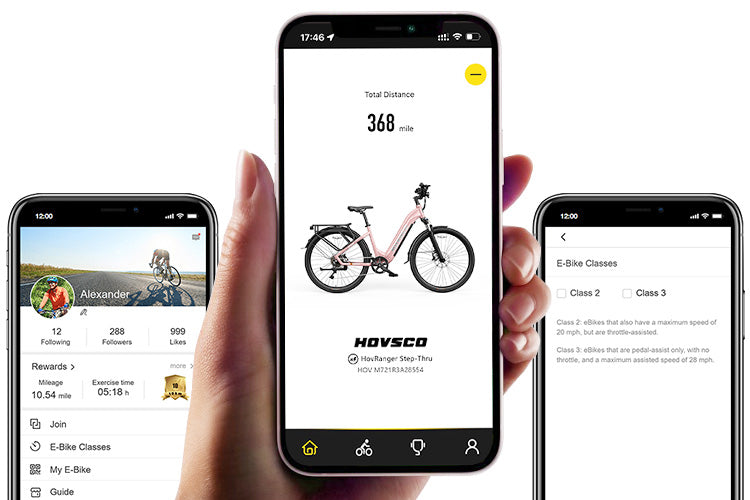

Connect With HOVSCO App

Our powerful 500W motor is coupled with our 720Wh high- capacity integrated battery! It ensures a long life expectancy and distinguished performance. The single range can be up to 60 miles per charge on pedal-assist mode and around 40 miles on pure electric power mode. This combination will take you further, and have you tackling hills and terrain you'd only ever dreamed of!

Ride For Comfort

To fit your everyday commute, we optimized every single design detail on the seat, handle, and frame. Straight-back riding posture makes you feel relaxed at all times. The step-thru frame makes you hop on & off easily. It is not just made for weekdays, but also for weekends to have fun journeys across town and backcountry.

Always Ready To Go!

Experience elegance and efficiency in one ride. Reinvigorate the casual bike ride! Feel your efforts amplified with its intuitive torque sensor, then set the pace. How you cruise is up to you. The all-new brake tail light allows you to command traffic with confidence as you enjoy your roll through the neighborhood.

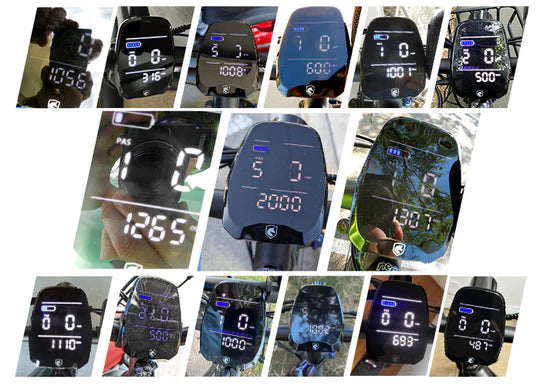

Every Mile Counts, Every Ride An Adventure.

Witness the reliability and longevity that paves the way for countless journeys. From short scenic routes to lengthy expeditions, our electric bikes accompany you on every journey. Share your journey with us and become a part of our story today!

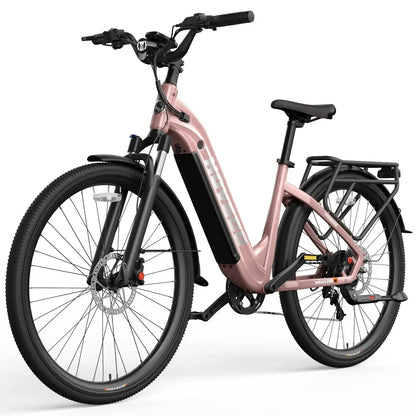

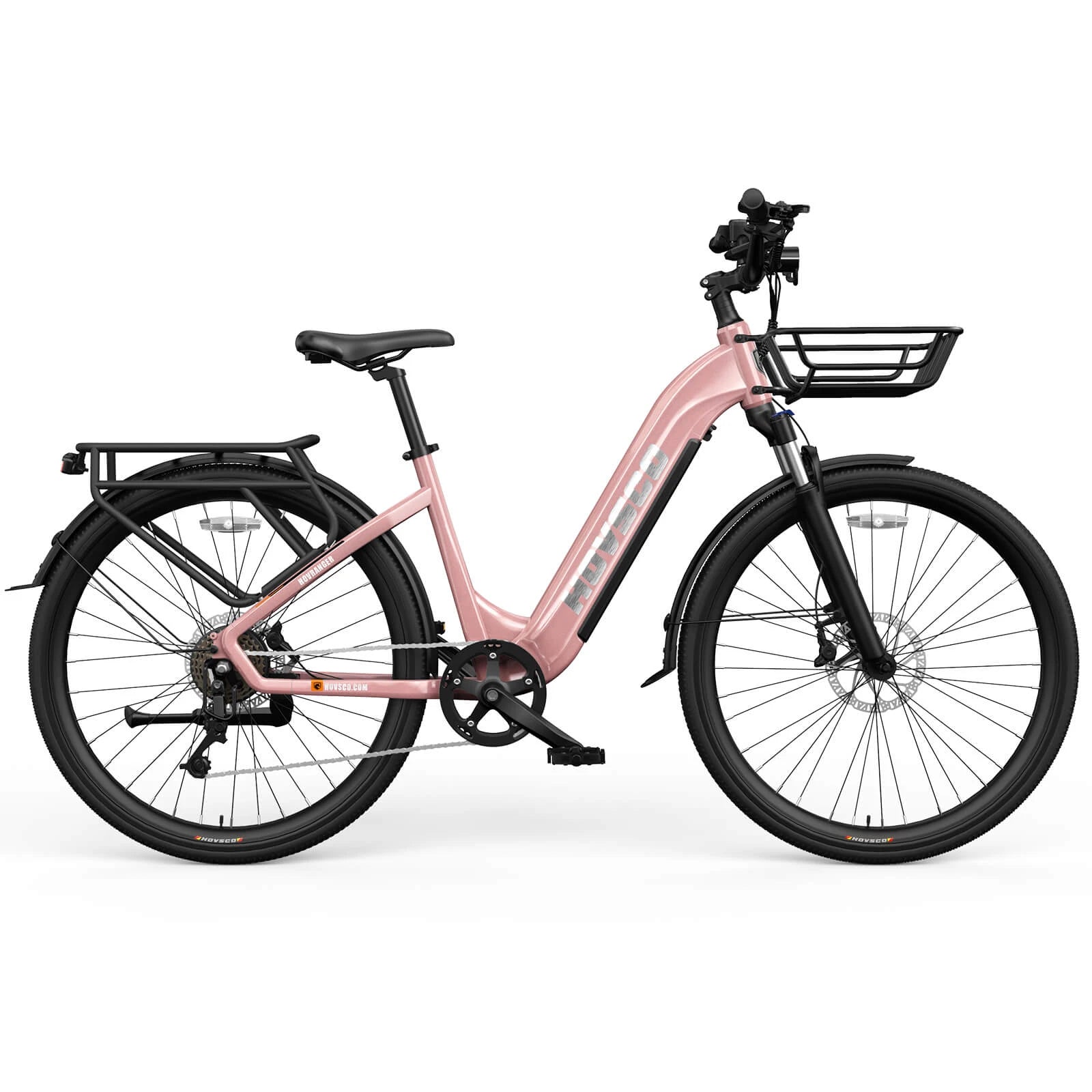

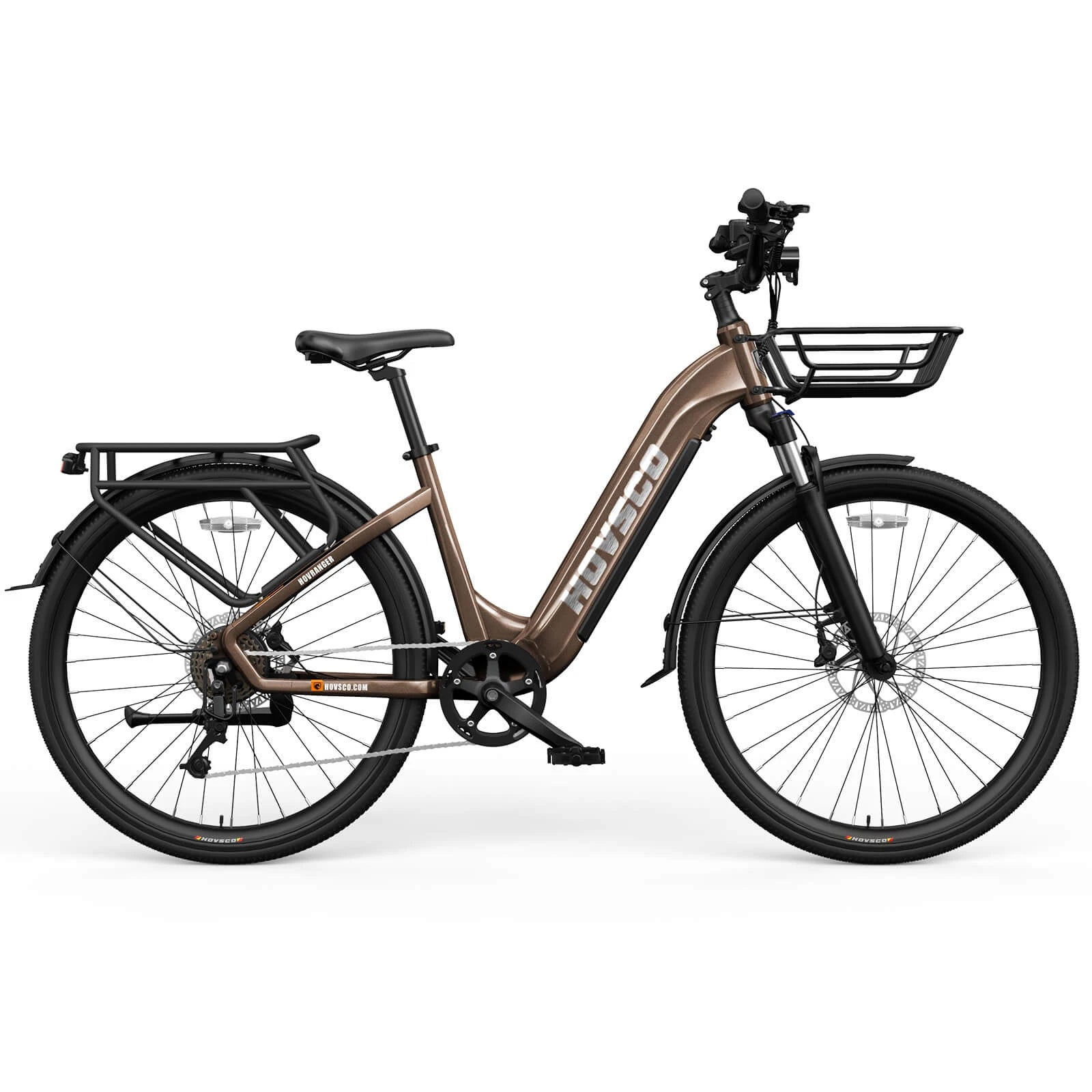

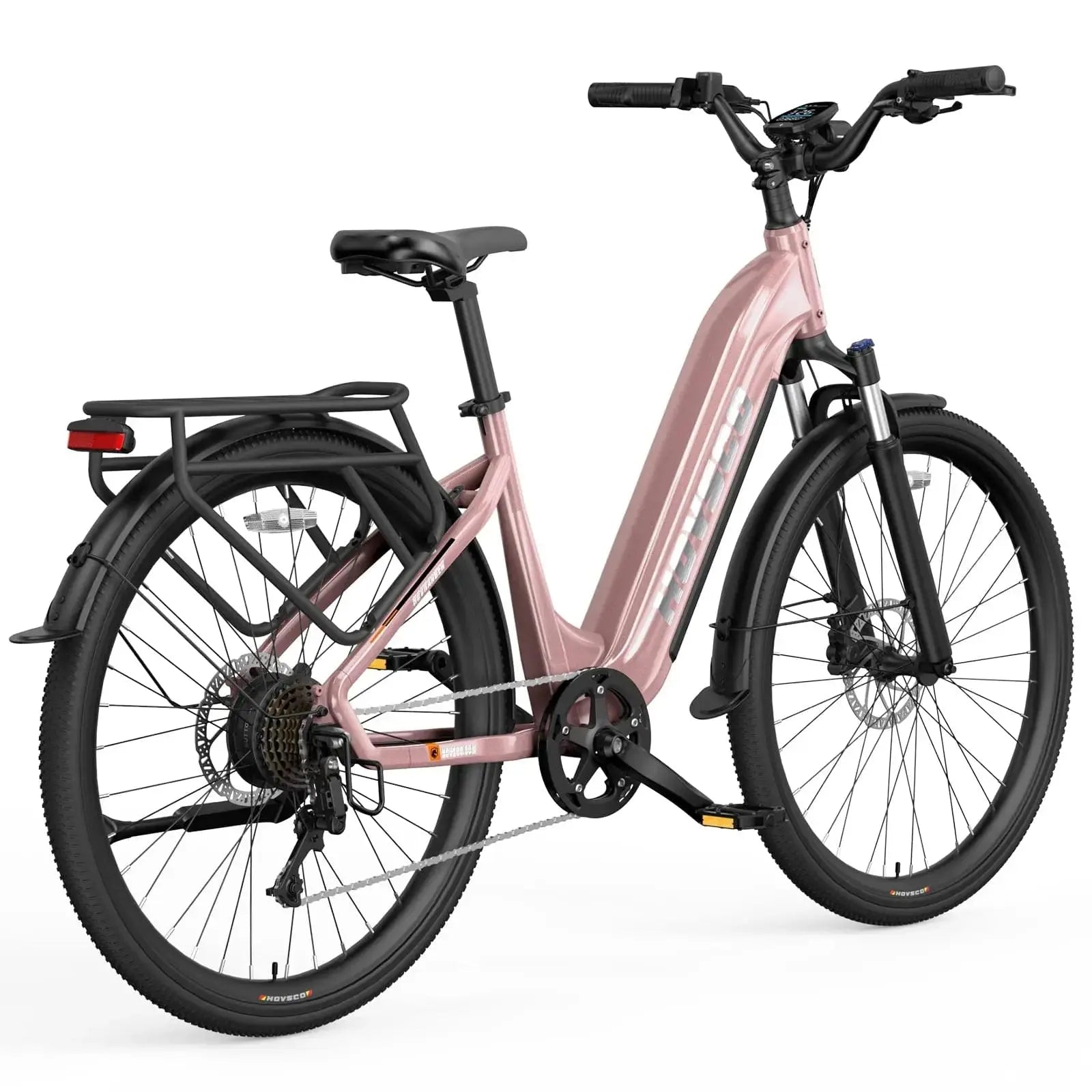

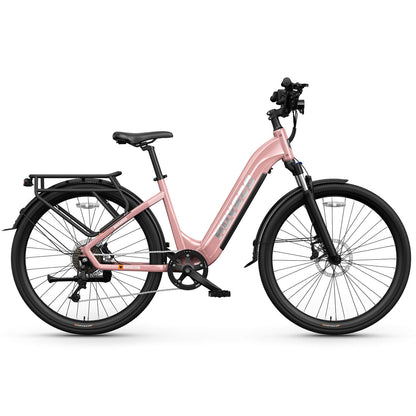

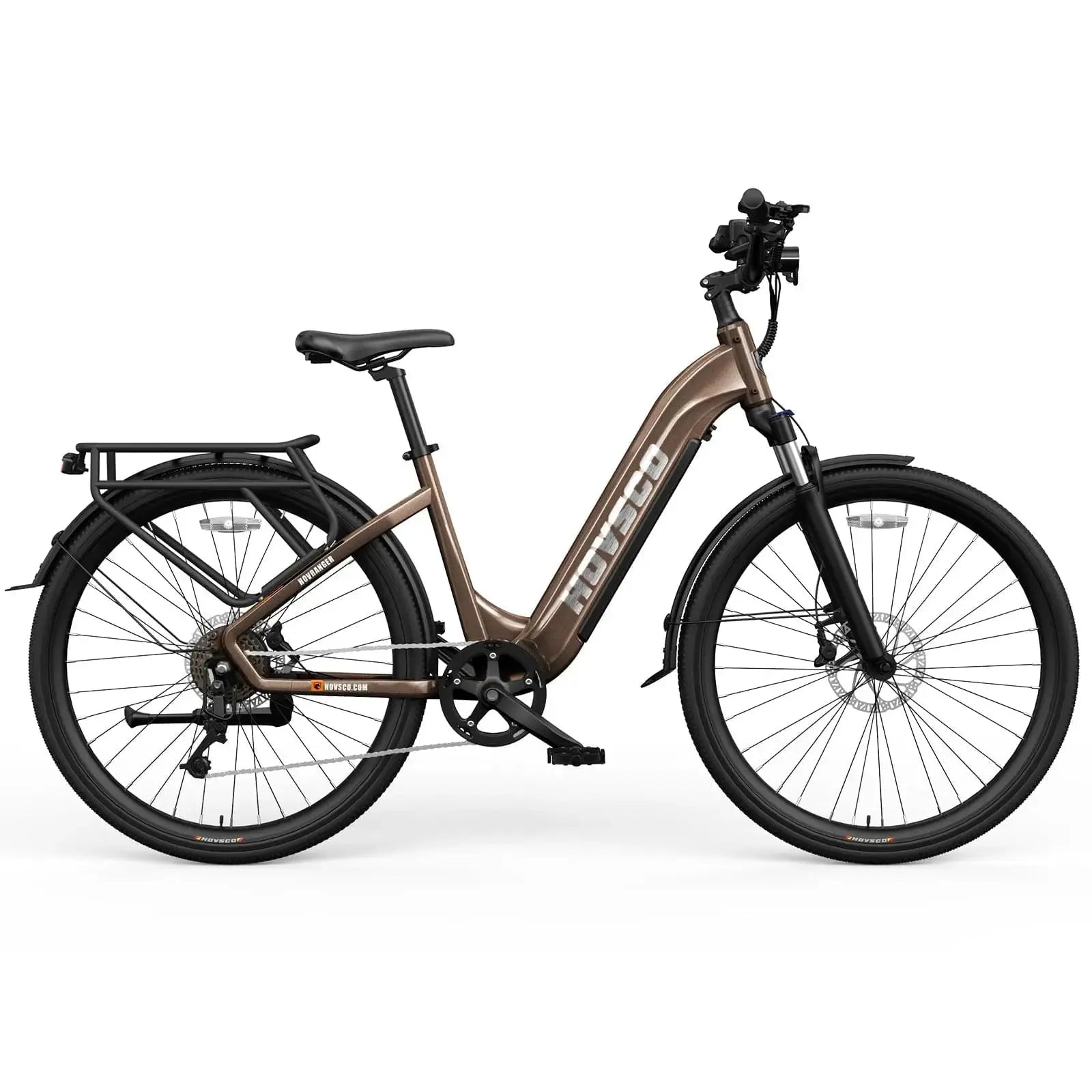

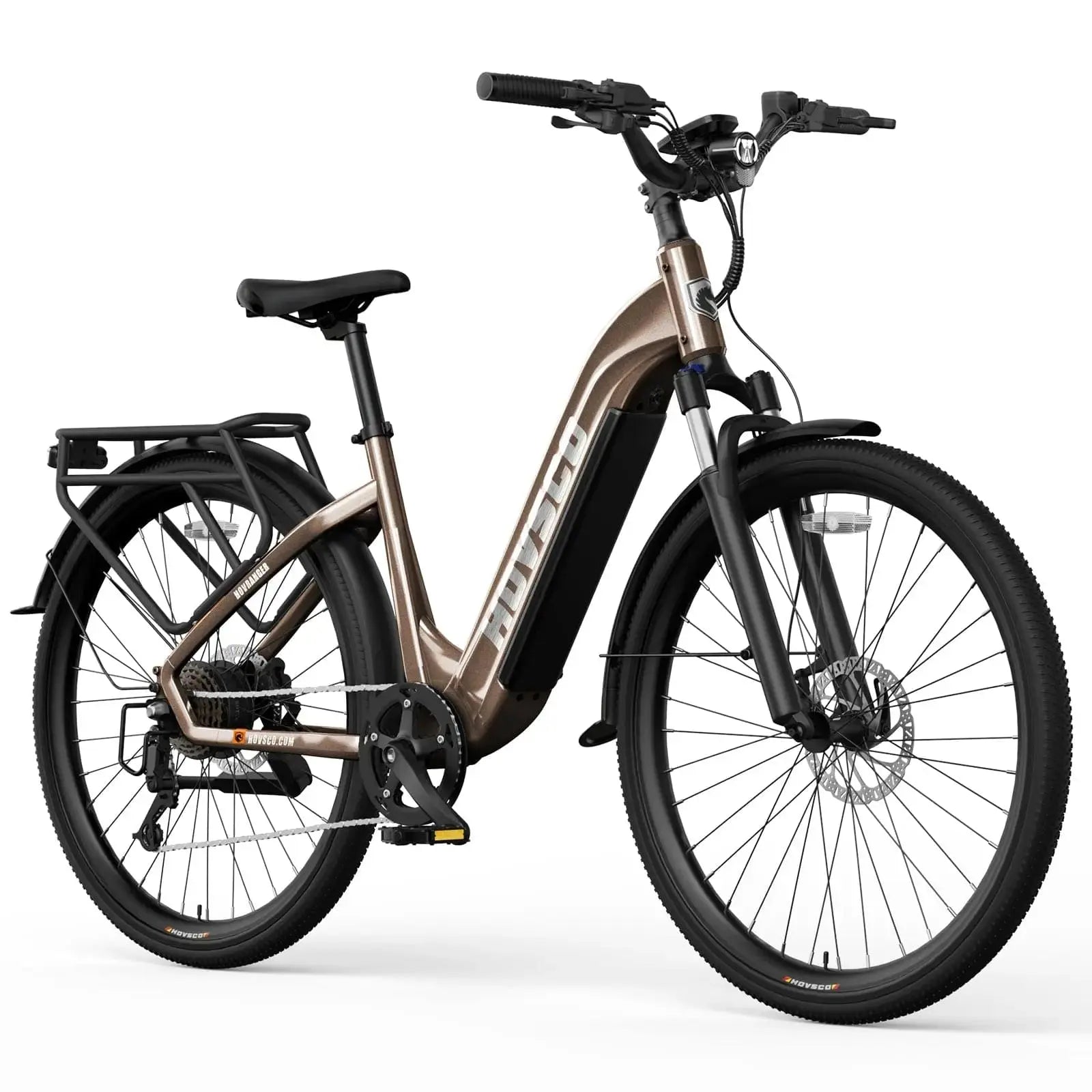

HovRanger Step Thru

Size & Fit

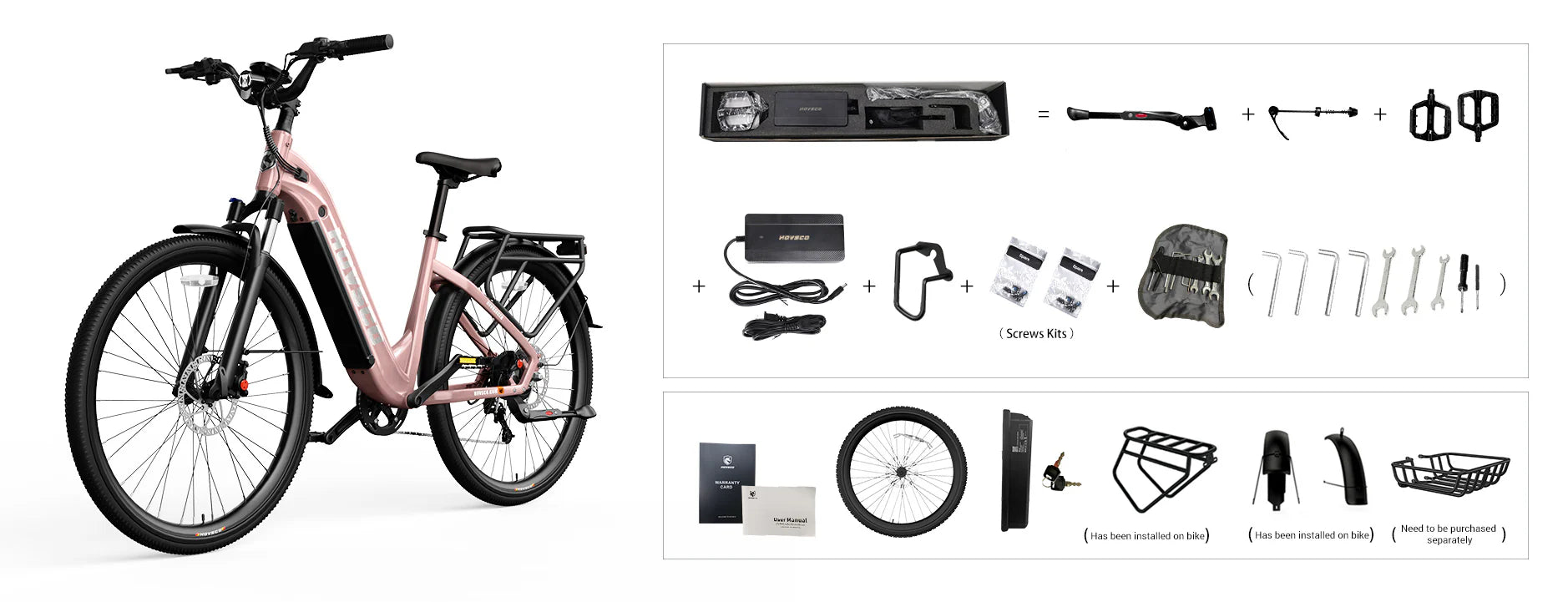

What's In The Box

  • 1* Electric Bike

  • 1* Kickstand

  • 1* Quick Release

  • 2* Pedals

  • 1* Charger

  • 1*Derailleur Guard

  • 2*Screws Kits

  • 4* Allen Key Wrenchs

  • 3* Wrenches

  • 2*Screwdrivers

  • 2* Owner's Manual

  • 1* Front Wheel

  • 1* Battery with keys

  • 1* Fender Set (Has been installed on bike)

  • 1* Rear Rack (Has been installed on bike)

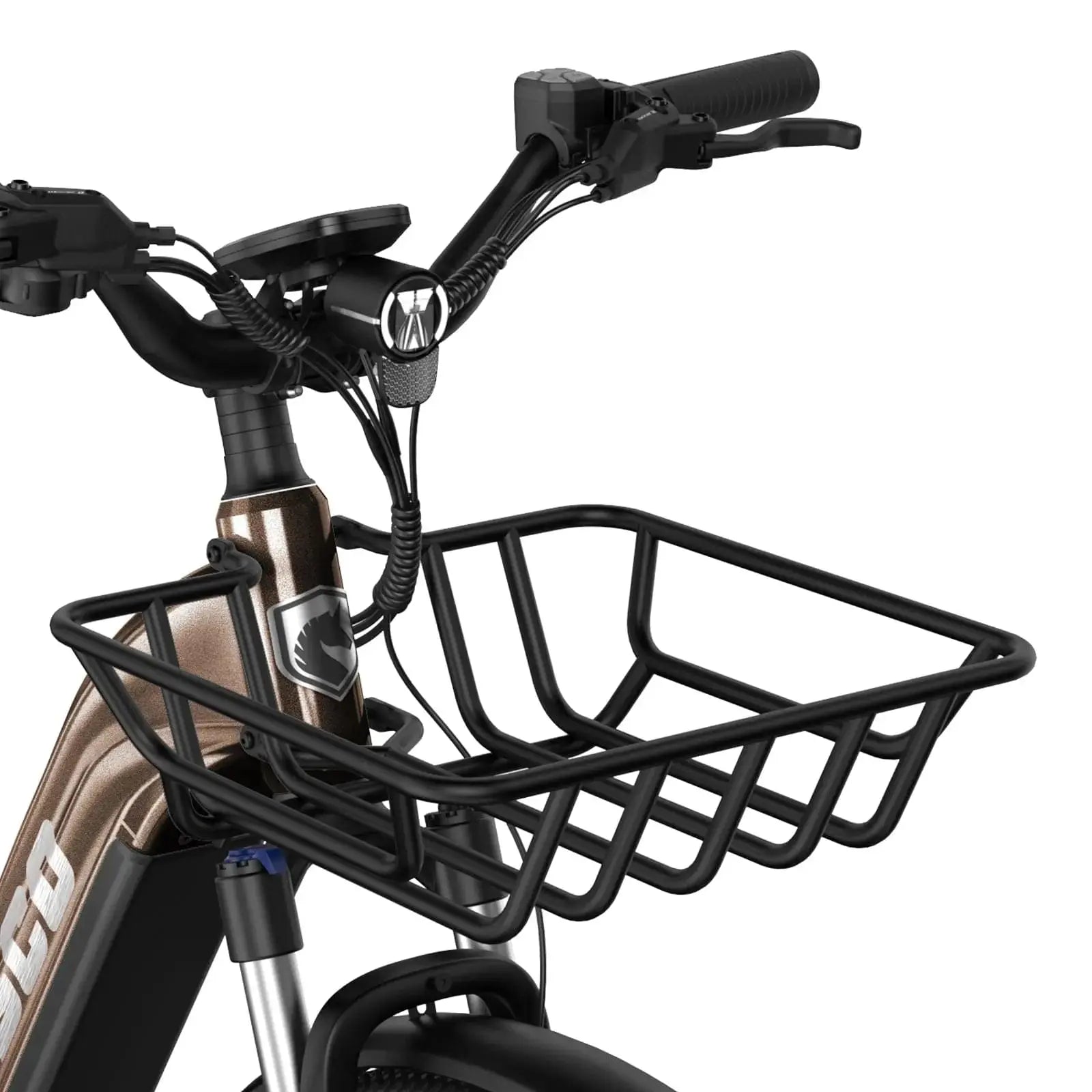

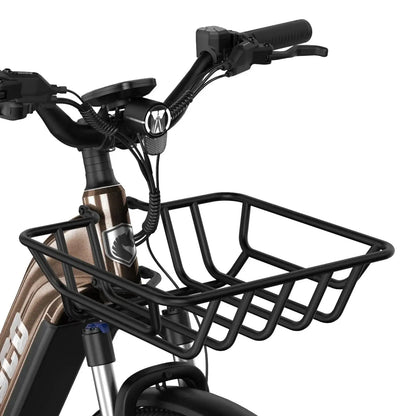

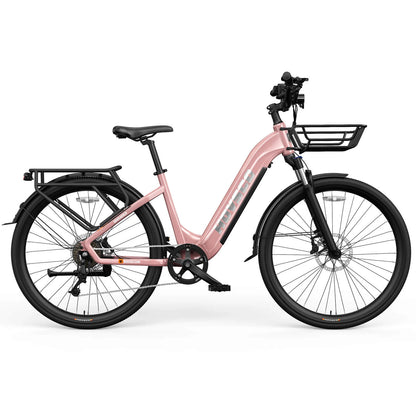

  • 1* Front Basket(Need to be purchased separately)

Technical Specifications

  • MOTOR

    970W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor

  • BATTERY

    Removable Internal Lithium-ion 48V, 15Ah (720Wh)

  • CHARGER

    Included is a 54.6V 3 Amp Fast Charger, 7 Hours Charging

  • DISPLAY

    BC280 LCD Smart Easy Read Display with Backlight screen with app

  • CRANKSET

    170mm w/ 42 T

  • CASSETTE

    14-28T, 7 Speed Cassette

  • BOTTOM BRACKET

    Square Taper, Sealed

  • BRAKES

    Hydraulic Disc Brakes, 180mm Rotors

  • REAR DERAILLEUR

    7 Speed

  • CHAIN

    7 Speed

  • PEDALS

    9/16' Alloy Platform

  • HANDLEBARS

    Aluminum 31.8mm,680mm

  • HEADSET

    VP Sealed Bearing Headset

  • GRIPS

    Ergonomic Comfort

  • SADDLE

    Quality Ergonomic Saddle

  • SEATPOST

    Forged Alloy, 30.4mm x 350mm, 2-Bolt Clamp

  • STEM

    Threadless, 31.8mm, 7 Degree Rise

  • SEAT CLAMP

    Quick Release

  • RIM

    Double Wall Aluminum 36h Front & Rear

  • SPOKES

    Black Stainless 12 Gauge

  • TUBES

    Butyl Rubber, Schrader Valve

  • HUBS

    36H Disc Thru-axle Front, Nutted Rear

  • TIRES

    27.5 x 2.20" Ebike Rated Tires

  • FRAME

    6061 Single-Butted Aluminum Alloy with Internal Battery

  • FORK

    Suspension Fork with 75mm travel, with lockout

  • KICKSTAND

    Included, Rear Mount

  • THROTTLE

    Throttle on demand - Throttle from a complete stop

  • SPEED

    Max 28 mph after unlocked

  • SENSORS

    Torque Sensor

  • PEDAL ASSIST

    5 Levels

  • RANGE

    40-60 Miles Average

  • HOVSCO APP

    Free Download in Apple App and Google Play Store

  • WEIGHT LIMIT

    Maximum Payload Capacity: 300 lbs

  • WEIGHT

    46.58lbs ( Not Including Battery )

  • WEIGHT

    55.4lbs ( Including Battery )

FAQ

  • 1.Can I find dealers near me & can I get test ride locally & can I pick up locally?

    Yes, Hovsco has partnered with tons of bikes shops and dealers for offering test ride, local pick up and ebike maintainence services. How to Find a dealer near you: Click here:https://www.hovsco.com/pages/test-ride

  • 2.If I buy it now, how many days will I receive it?

    Under normal circumstances, it can be delivered within 2-7 working days (except for remote areas).

  • 3.What courier do you use for deliveries?

    Generally use UPS or FedEx, if you have other designated carriers, you can contact us.

  • 4.Do I need to pay for shipping?

    No, we are free of shipping in the US.

  • 5.Can I track my item?

    After the order is sent, the email will automatically send the tracking number to you, and you can use this tracking number to view the logistics information. If you cannot receive the email, please contact us as soon as possible and we will track the logistics information for you.

  • 6.If I don’t want it after I receive it, Can I return the goods?

    Please check the return and refund policy here.

  • 7.Can it be shipped anywhere in the United States?

    In North America, we deliver to Continental United States. Please note we may not be able to ship to certain remote/isolated areas of these regions. If this is the case, we will contact you for alternative solutions. Please note we do not ship to PO Boxes.

  • 8.Will I be charged sales tax?

    Sales tax will be collected on all orders and will include state and municipal taxes as applicable.

  • 9.How quickly can it be assembled?

    HOVSCO e-bikes can be assembled in 45–60 minutes.

  • 10.Can the removable battery be secured and locked on the bike?

    Yes. With a lock and key, that is possible. Unlock the battery and take it on the go. Charge it in the office or at home.

  • 11.Can I use it during rainy days?

    Yes, our ebikes are IP4 waterproof. You can ride our HOVSCO bikes in the rain or through a puddle. Do take note that we do not recommend riding during heavy rain due to safety reasons. Also, do not use high-pressured jets to clean the bike. This is to avoid damaging the electrical components.

  • 12.Does it include a throttle?

    Yes, a throttle is included and installed.

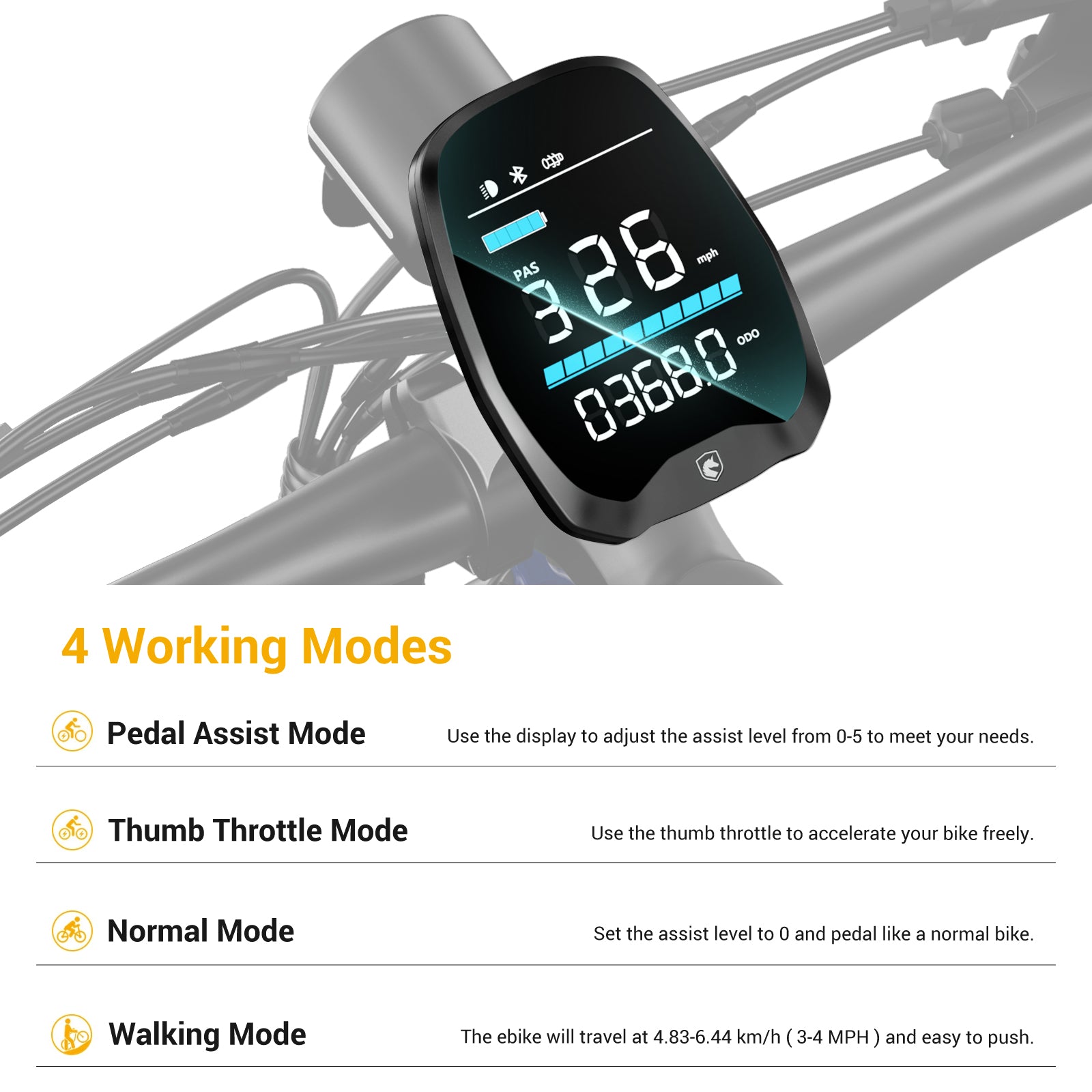

  • 13.What riding modes do the e-bike have?

    There are four riding modes:Pedal Assist Mode: Use the display to adjust the assist level from 0-5 to meet your needs.Thumb Throttle Mode: Use the thumb throttle to accelerate your bike freely.Normal Mode: Set the assist level to 0 and pedal like a normal bike.Walking Mode: Press and hold the minus button for three seconds to enter " walking mode", the ebike will travel at 4.83-6.44 km/h ( 3-4 MPH ) without pushing by man power, making it easy to be moved on challenging terrains (e.g. narrow trails and very steep hills).

  • 14.How do you charge the E-bike?

    You may charge the bike directly through the included power cable or remove the battery and take it home to charge.

  • 15.Would I have to inflate the tires before my first ride?

    Yes. As the bikes have been stored, it will be advisable to inflate to your desired hardness.

  • 16.Do I need any special tools to assemble the bike or does it come with everything I need?

    Yes. The package comes with the necessary tools to assemble the bike. It will be effortless and straightforward.

  • 17. Is this e-bike suitable for my height and weight?

    Yes. The recommended rider height is 5'1" to 6'7", and the maximum payload is 450 lbs.
